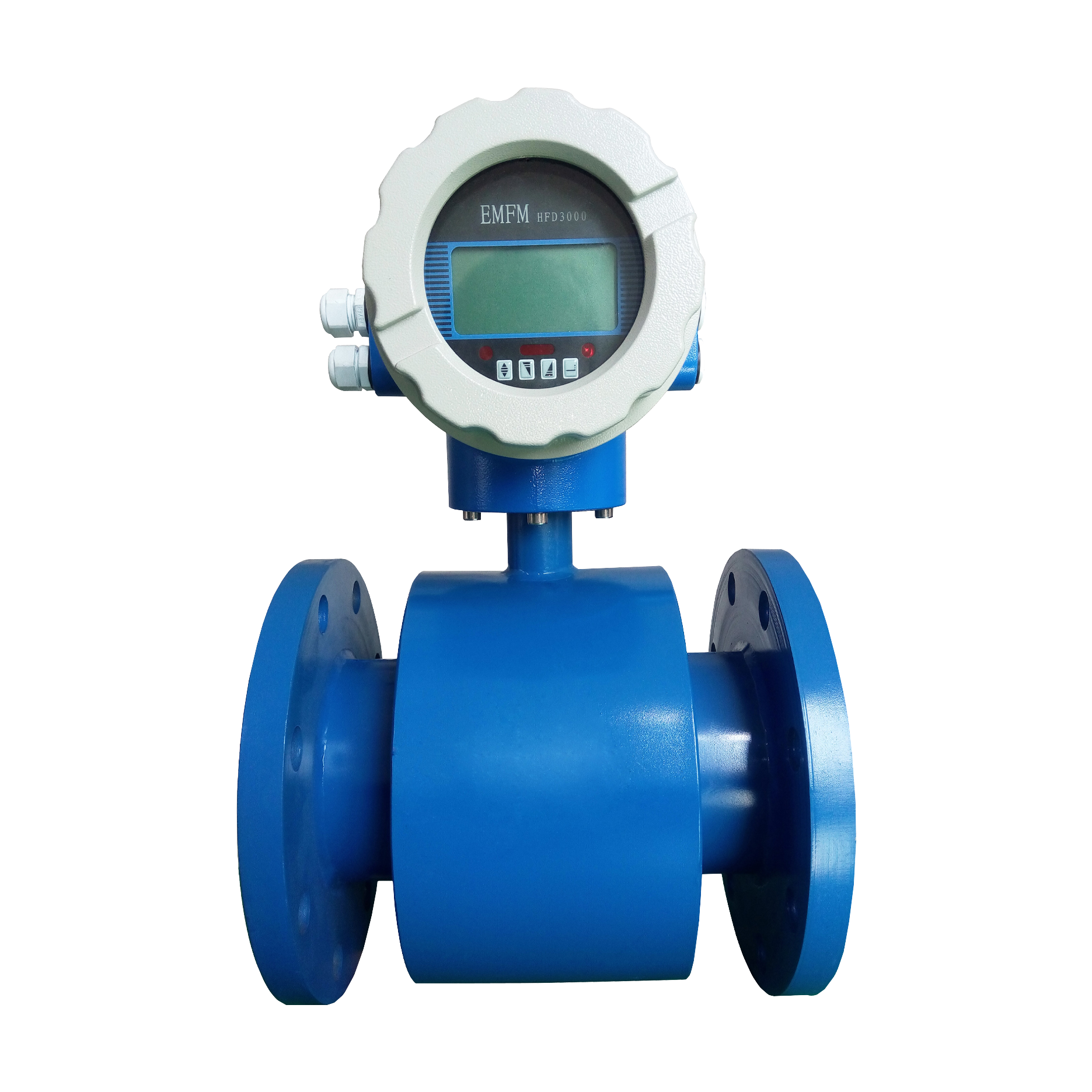

EFM Series Electromagnetic Flow Meter

EFM Series Electromagnetic Flow Meter

EFM Series Electromagnetic Flow Meter

  • Intro

  • Features

  • Main parameters

  • Principle Applica

  • Outline size

Electromagnetic flow meters(hereinafter referred as EMF)can be applied to a variety of conductive  liquid measurement such as water, sewage, mud, pulp, beverages, chemicals, viscous liquids and   suspensions. EMF has Compact Type and Remote Type. If you choose compact type, means the   calculator and flow sensor will be mounted in same place; while the remote type means calculator   mounted in different place, the largest distance between calculator and flow sensor is 100m. Default is  compact type.

Technical Data:

Power:AC220V  & DC 24V

Velocity range:0.5-10m/s

Accuracy:Class 1

Diameter:DN20-DN1000

Connection:Carbon steel,Flange

Interface:RS485

Protocol:MODBUS / BACNET

Output:4-20mA or pulses

Load resistance:

Full isolated Load resistance<750Ω

frequency signal:0-1KHZOptoelectronic isolation OCT(default)

Total power consumption:<20W

Rubber lining:-20~+80ºC
PTFE lining:-30~+150ºC

IP grade:IP65/IP68 (default IP68)

Pressure grade:PN16 / PN25 (default PN16)
